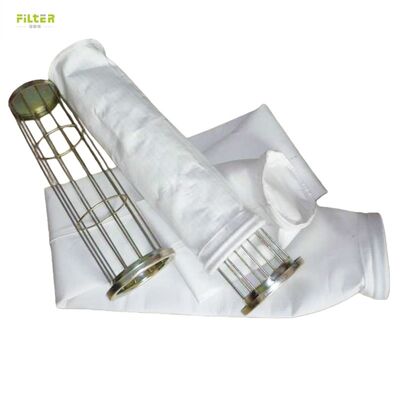

Aramid Filter Bag with PTFE Coating for Industrial Combustion Applications High Tensile Strength and Chemical Resistance:
Description:
Material:PTFE filter cloth
Weight: 750GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Specification:
| Fibre |
PTFE |
| Scrim |
PTFE |
| Weight(G/M2) |
750 |
| Thickness (mm) |
1.27 |
| Width (mm) |
≤ 2.2 |
| Length |
50m/roll |
| Finish treatment |
Singeing,Calendering,Heat-set,PTFE-coating,Water and Oil Repellent,PTFE membrane Coating. |
| Air permeability (L/dm2*min@200pa): |
5.47 |
| Tensile strength (N/5× 20cm) |
Warp:>700 Weft:>600 |
| Tensile elongation (%): |
Warp:<30 Weft:<45 |
| Temperature (ºC): |
Continue: 240 Instant: 280 |
| Application |
Mainly used in Combustion,Coal burning boiler,Waster incineration,Carbon black producing. |
Product Feature:
1. Be composed of 100% pure PTFE.
2. It can operate at 240oC continuously.
3. Acid and alkali resistance,corrosion resistance and have strong chemical stability(0-14PH)
4. It can be used under high humidity environment.
5. Low shrinkage rate even if under high temperature.
Application:
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Shipping Details:
|
SHIPPING
(Normally arrive port time in working days)
|
| Destination |
Express/Courier |
SHIP BY SEA |
SHIP BY AIR |
SHIP BY EMS |
| DHL/FEDEX/UPS/TNT |
| North America |
3~7 days |
15~24 days |
5~7 days |
10~12 days |
| South America |
3~7 days |
15~25 days |
5~7 days |
10~12 days |
| European Countries |
3~7 days |
20~30 days |
5~7 days |
10~12 days |
| Africa Countries |
3~7 days |
40~50 days |
5~7 days |
10~12 days |
| The Middle East |
3~7 days |
15~25 days |
5~7 days |
10~12 days |
| Australia |
3~7 days |
10~15 days |
5~7 days |
10~12 days |
